Vehicle GPS Tracker
Teltonika FM1100

Description

FM1100 is a new Vehicle Tracker based on the GSM/GPRS network and GPS satellite positioning system, which set multiple function of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. Objects can be tracked and monitored with GPSWOX Real Time Tracking System on your Computer, Mobile or Tablet (Apple, Android, Windows)

LV-CAN200 compatibility

Specification

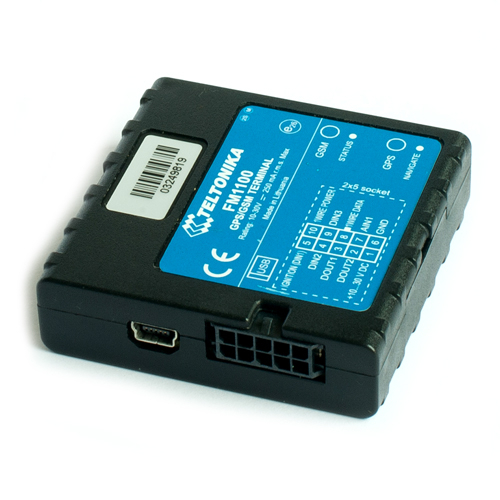

FM1100

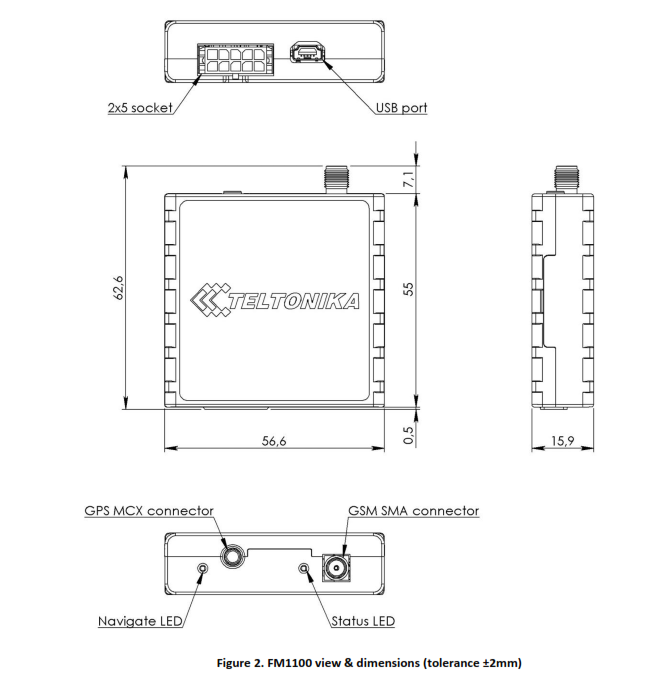

The smallest FM we've ever made

• Small size
• Car tracking
• Parametrized operation (acquire & send)
• Integrated scenarios
• Overspeeding
• Authorized driving (50 iButton keys)
• Immobilizer
• Online tracking
• Low energy consumption in deep sleep mode

FM1100 is light terminal with GPS/GLONASS and GSM connectivity, which is able to get device coordinates and other data and transfer them via GSM network. This device is perfectly suitable for applications where location acquirement of remote objects is needed. So you can track your remote objects (trucks, cars etc) quickly and easily.

In case of losing connection FM1100 can store up to 8000 records, and once the connection is established the device will send stored data via GPRS. So you won't lose
your data (coordinates, sensors data and etc.).

FM1100 can perform tasks on remote objects, such as monitoring engine status, controlling truck's door etc.

Application:

• Track and trace
• Road assistance
• International logistics
• Personal car's and van tracking
• Fleet management

TECHNICAL DETAILS:

GSM:

• Quad-band 900/1800 MHz; 850/1900 MHz
• GPRS class 10 (up to 85,6 kbps);
• SMS (text/data)

GPS/GLONASS:

• NMEA protocol compatible. Messages: GGA, GGL, GSA, GSV, RMC, VTG, TXT
• 32 channel GPS/GLONASS receiver
• -161 dBm sensitivity

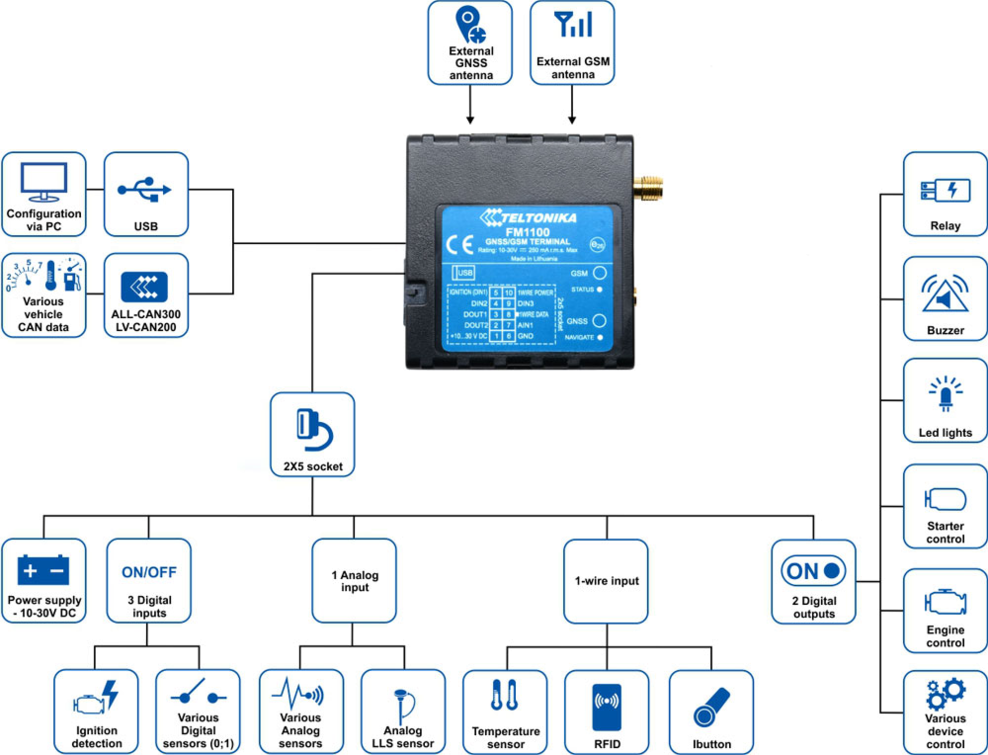

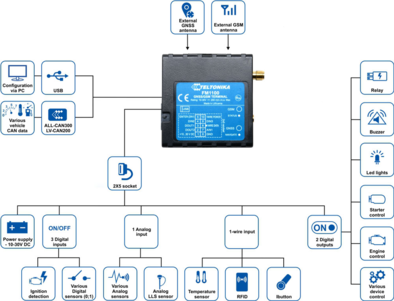

Interface:

• 1 Digital Input Reserved for Ignition Status Monitoring
• 2 Digital Inputs
• 1 Analog Input (10V or 30V range)
• 2 Digital Open-collector Outputs (connecting external relays, LED, buzzers etc.)
• 1-Wire® protocol
• Power supply (+10...+30) V DC
• 2 Status LEDs
• USB Port
• Configuration and firmware upload (FOTA and via USB cable)
• External GSM antenna (SMA connector)
• External GPS/GLONASS antenna (MCX connector)

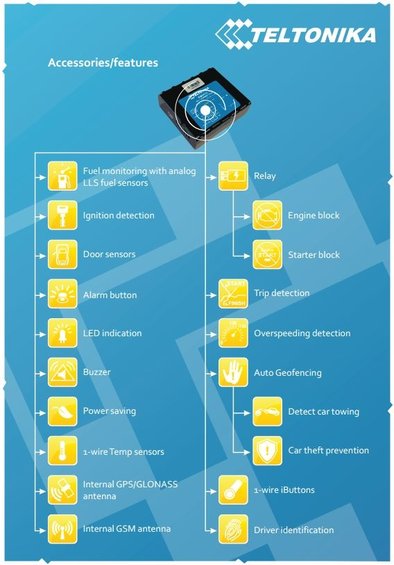

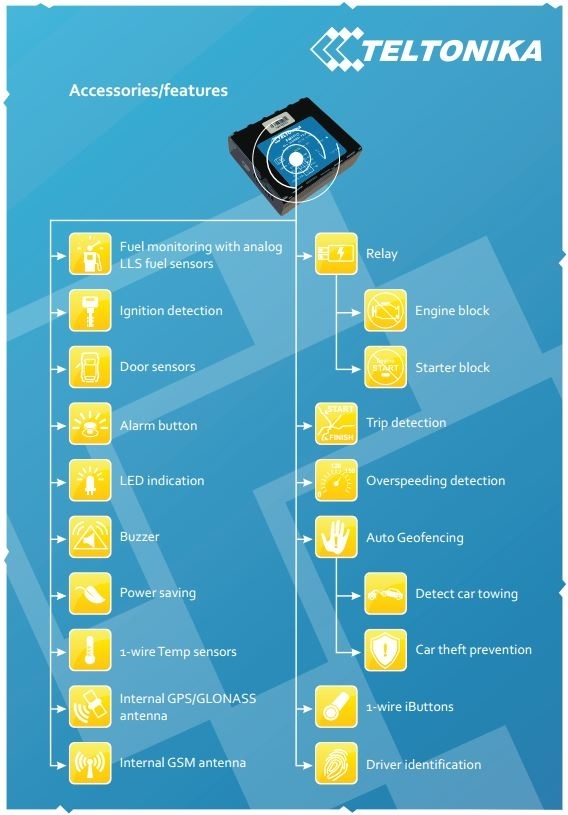

Features:

• GPS/GLONASS and I/O data acquisition
• Real Time tracking
• Smart algorithm of data acquisition (time, distance, angle, ignition and event based)
• Sending acquired data via GPRS (TCP/IP and UDP/IP protocols)
• Smart algorithm of GPRS connections (GPRS traffic saving)
• Operating in roaming networks (preferred GSM providers list)
• Events on I/O detection and sending via GPRS or SMS.
• Scheduled 24 coordinates SMS sending
• 5 geofence zones (rectangular or circle)
• Deep Sleep mode (saving vehicle's accumulator)
• FOTA (firmware updating via GPRS)
• Motion sensor
• Small and easy to mount case
• Roaming dependant operation (GPRS traffic saving in roaming zones)
• Operation mode presets:
• Advanced overspeeding detection
•  Driver identification (1-Wire® iButton ID key)

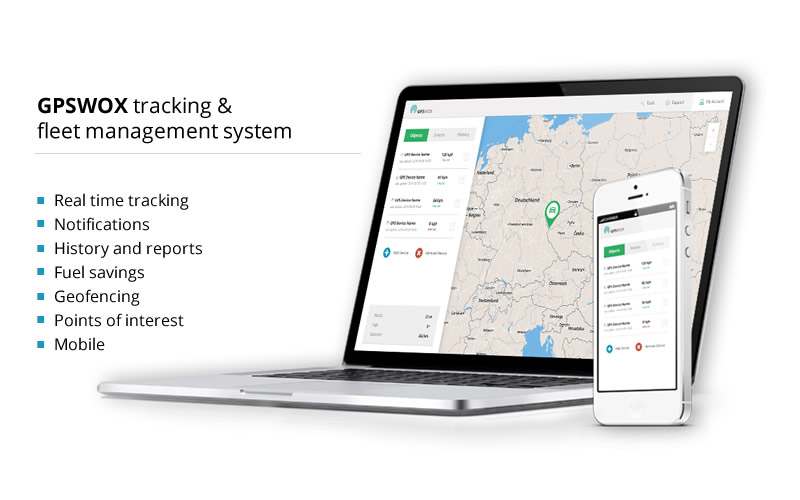

Tracking System

Real-Time Tracking

View the location of objects in real time, on the map of your choice: OSM, Google, Satellite etc. This service can be used at any time of the day from any computer or smartphone connected to the Internet. Furthermore, you will be able to view additional information about the object: exact address,  travel speed, petrol consumption etc.

Notifications

Get instant alerts about your defined events: when object enters or exits geo-zone, speeding, theft, stopovers, SOS alarms etc. Via system pop-up window, via email or in the smartphone app.

History and Reports

Preview or download reports in different formats (XLS, PDF, CSV, TXT). Reports can include various information: driving hours, stopovers, distance traveled, fuel consumption etc. by date and GPS tracker name.  Detailed and group reports may be also available.

Fuel Savings

Check tank fuel level and fuel consumption along the route. Aggressive driving: speeding, rapid acceleration and braking, directly influencing fuel consumption. Improving driving behavior can cut your fuel costs significantly. Reductions of 5 to 15% have been reported by many companies. Furthermore, fuel consumption control is a great preventive measure against theft and fraud.

Geofencing

Geofence feature allows you to set up geographic boundaries around areas that have specific interest for you. And then receive automated alerts whenever object enters or leaves those boundaries.

POI & Tools

With POI (Points of Interest) you can add markers at the locations that might be important to you: gas station, a hotel, a restaurant, a shopping mall etc. Also, you can name the place and add description. Furthermore, you can use tools for calculating distances between places on the map and etc.

Mobile

Easily track and access all GPSWOX features on you mobile or tablet.  Furthermore, you can download for free ‘Mobile GPS Tracker’ app on your iPhone, Samsung or Lumia and transform your device into GPS tracker.

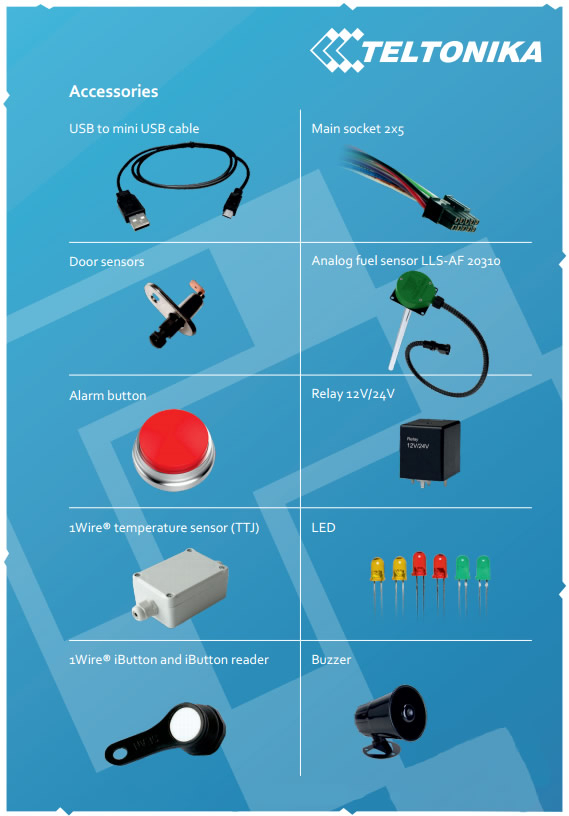

Optional accessories

GPSWOX system supports various accessories. With driver identification functionality you can keep track of driver assignments. With camera and microphone installed in the cabin, you can get live video and audio stream to your computer. With temperature and fuel sensors control your cargo safely and profitably.
