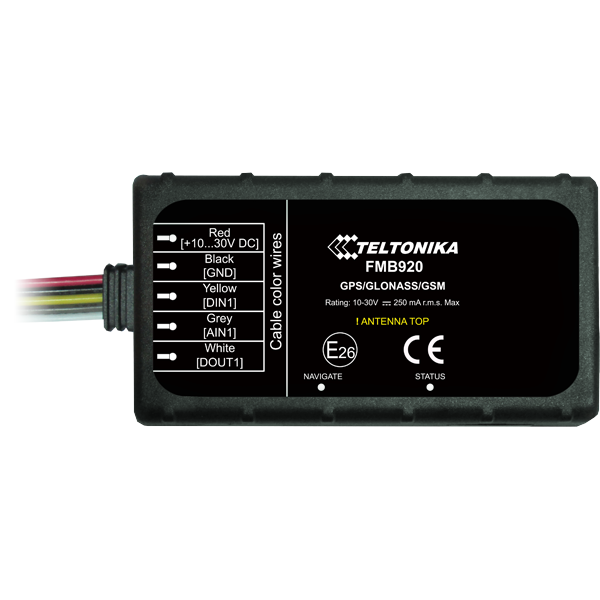

Vehicle GPS Tracker
Teltonika FMB920

Description

Downloads

User manual >>

FMB.Ver.01.00.19.Rev.02 and configurator >>

Features

TECHNOLOGY

•    GNSS
•    GPRS
•    SMS
•    Bluetooth

HARDWARE

•    Internal GSM antenna
•    Internal GNSS antenna
•    DIN – digital input –1
•    AIN - analog input –1
•    DOUT –1
•    Accelerometer
•    Battery –170mAh Li-ion 3,7V
•    IP41
•    Micro SD
•    10 - 30V
•    Overvoltage protection
•    1x SIM Card
•    USB 2.0 Interface

FIRMWARE

•    NITZ time synch.
•    Configuration over Bluetooth
•    Bluetooth sensors support
•    Ignition detection
•    Geo-fence
•    Sleep/Deep sleep
•    Overspeeding detection
•    FOTA
•    Remote Log
•    GPRS commands
•    Green driving
•    Fuel monitoring LLS
•    Jamming detection
•    NTP time synch.
•    SMS event
•    Idling detection
•    Crash detection
•    Odometer
•    Trip detection
•    Towing detection
•    Integrated scenarios
•    Remote configuration over SMS
•    Offline tracking
•    Auto Geofencing
•    Voice call

Technical details

GSM/GPRS features:

• Quad-band 900/1800 MHz; 850/1900 MHz
• GPRS Multi-Slot Class 12(up to 240 kbps)
• GPRS Mobile Station Class B
• SMS (text/data)

Bluetooth:

• Bluetooth specification V3.0
• Bluetooth transceiver fully compliant with Bluetooth specification V3.0 for external peripherals:
• Voice calls over Bluetooth
• Configuration via Bluetooth
• Bluetooth sensors

GNSS:

• Tracking: 33/ 99 acquisition channels
• -165 dBM sensitivity
• Hot start <1s
• Warm Start < 25s
• Cold start < 35s
• NMEA-183 protocol
• GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
• Accuracy < 3m

Interface:

• 1 Digital Input
• 1 Analog Input
• 1 Digital Open-collector Output (connecting external relays, LED, buzzers etc.)
• Built in accelerometer
• Internal backup battery
• Power supply (+10…+30) V DC with overvoltage protection
• Internal High Gain GNSS antenna
• Internal High Gain GSM antenna

Features:

• Dimensions 79x43x12 mm.
• Up to 32 GB microSD memory card for up to 275 million records
• Fully controllable digital output via SMS and configurator
• Ultra small and easy to mount in limited access areas case
• Fast first GPS fix
• Real Time tracking
• Sending acquired data via GPRS (TCP/IP and UDP/IP protocols)
• Smart algorithm of GPRS connections for GPRS traffic saving
• Operating in roaming networks by preferred GSM providers list
• Events from I/O elements detection and sending via GPRS or SMS
• Auto Geofencing and T owing Detection for car theft prevention
• Deep Sleep mode (less than 2 mA power consumption)
• Firmware and configuration update via GPRS
• Smart data acquisition mode
• High Quality track even in high density populated urban areas or canyon
• Color Ribbon undetachable cable
• Easy to mount
• High Gain internal GPS / GLONASS and GSM antennas
• 2 status LED
• Crash detection
• Towing detection using accelerometer
• Smart data acquisition based on:
• Time
• Distance
• Angle
• Ignition or any other I/O events
• Configurable using Secured SMS commands and configurator on PC

Tracking system

Real-Time Tracking

View the location of objects in real time, on the map of your choice: OSM, Google, Satellite etc. This service can be used at any time of the day from any computer or smartphone connected to the Internet. Furthermore, you will be able to view additional information about the object: exact address,  travel speed, petrol consumption etc.

Notifications

Get instant alerts about your defined events: when object enters or exits geo-zone, speeding, theft, stopovers, SOS alarms etc. Via system pop-up window, via email or in the smartphone app.

History and Reports

Preview or download reports in different formats (XLS, PDF, CSV, TXT). Reports can include various information: driving hours, stopovers, distance traveled, fuel consumption etc. by date and GPS tracker name.  Detailed and group reports may be also available.

Fuel Savings

Check tank fuel level and fuel consumption along the route. Aggressive driving: speeding, rapid acceleration and braking, directly influencing fuel consumption. Improving driving behavior can cut your fuel costs significantly. Reductions of 5 to 15% have been reported by many companies. Furthermore, fuel consumption control is a great preventive measure against theft and fraud.

Geofencing

Geofence feature allows you to set up geographic boundaries around areas that have specific interest for you. And then receive automated alerts whenever object enters or leaves those boundaries.

POI & Tools

With POI (Points of Interest) you can add markers at the locations that might be important to you: gas station, a hotel, a restaurant, a shopping mall etc. Also, you can name the place and add description. Furthermore, you can use tools for calculating distances between places on the map and etc.

Mobile

Easily track and access all GPSWOX features on you mobile or tablet.  Furthermore, you can download for free ‘Mobile GPS Tracker’ app on your iPhone, Samsung or Lumia and transform your device into GPS tracker.

Optional accessories

GPSWOX system supports various accessories. With driver identification functionality you can keep track of driver assignments. With camera and microphone installed in the cabin, you can get live video and audio stream to your computer. With temperature and fuel sensors control your cargo safely and profitably.
